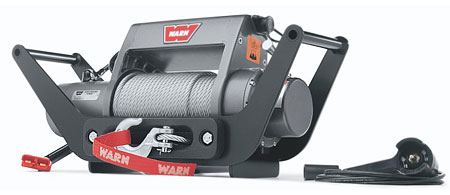

WARN XD9000i MULTI-MOUNTTM PORTABLE








XD9000i MULTI-MOUNTTM PORTABLE
All the power and reliability of the XD9000i in a portable package. No-load retrieval line speed is fast-38 feet/minute. Integrated control pack protects the winch's electrical components, and the 4.6hp Series WoundTM motor delivers big torque and power. Plugs into any standard 2" Class III receiver hitch and gives you the ability to move the winch from the front or back of your rig. Power is supplied through quick connect plugs. A good choice for full-size rigs and heavier recovery situations.

This Kit includes winch, remote, carrier, 7.5' power lead with quick connect plug for front of vehicle and hawse fairlead. Front receiver and rear power lead sold separately.

XD9000i MULTI-MOUNTTM SPECS/PART NUMBERS

Your Price: $1493.00
Part Number: PN 37441

Rated Line Pull: 9000 lbs. (4080 kgs.) single-line
Motor: 12V 4.6hp, Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 104 lbs. (47 kgs.)
Wire Rope: 125', 5/16" diameter (38m, 8mm diameter)
Fairlead: Hawse
Recommended Battery: 650 CCA minimum for winching
Battery Leads: Front heavy-duty 7.5'/2.2m with quick connect plug
Finish: Argent Powder Coat

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 38(11.6) 70 amps 1/9000(4082)
2000(910) 14.4(4.39) 180 amps 2/8190(3715)
4000(1810) 11(3.35) 255 amps 3/7500(3402)
6000(2720) 8.67(2.64) 330 amps 4/7010(3180)
8000(3630) 6.88(2.10) 415 amps 5/6570(2980)
9000(4080) 6.38(1.94) 460 amps


Above performance specs are based on first layer of drum
