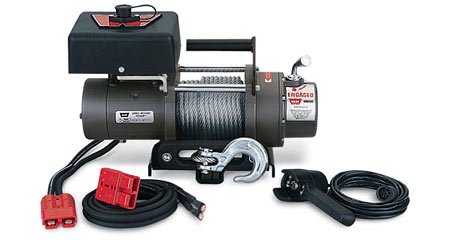

| M6000 SDP SHORT-DRUM PORTABLE |
A short-drum portable winch for light sport utility
vehicles, the 4.8 hp M6000 SDP provides plenty of pulling power, can be
mounted single-handedly, and stores in a snap. This compact winch comes
complete with handle/mounting system for a Class III 2" receiver, hawse
fairlead, remote control with 12' lead, free spool clutch, 50' of 5/16"
wire rope and power lead with
Quick Connect plug for the front of the vehicle. The perfect companion
when you take your rig off-road, hunting, fishing or skiing.
This Kit includes winch with built-in carrier, remote, power lead with
Quick Connect plugs for front of vehicle and hawse fairlead. Front
receiver and rear power cables sold separately.
|
| M6000 SDP SPECS/PART NUMBERS |
Your Price: $999.00
Part Number: PN 39116
|
| Rated Line Pull: 6000 lbs. (2722 kgs)
single-line |
| Motor: 4.8 hp, Series WoundTM |
| Remote Control: Remote switch, 12'
(3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 156:1 |
| Lubrication: Aeroshell #17 |
| Clutch (freespooling): Sliding Ring
Gear |
| Brake: Automatic Direct Drive Cone |
| Drum Diameter/Length: 2.5"/5.0"
(26.4cm/13cm) |
| Weight: 72 lbs. (31 kgs.) |
| Wire Rope: 50', 5/16" diameter (15m,
8mm diam.) |
| Fairlead: Hawse |
| Recommended Battery: 650 CCA minimum
for winching |
| Battery Leads: Front heavy-duty
7.5'/2.2m with quick connect plug |
| Finish: Argent Powder Coat |
|
| 12V DC PERFORMANCE
SPECS |
Line Pull
Lbs.(Kgs.) |
Line Speed
FT./min(M/min.) |
Motor
Current |
Pull by layer
layer/Lbs(Kgs.) |
| 0 |
48.5(14.78) |
85 amps |
1/6000(2722) |
| 2000(907) |
23.7(7.22) |
175 amps |
2/5460(2477) |
| 4000(1814) |
12.9(3.93) |
360 amps |
3/5000(2268) |
| 6000(2722) |
10.0(3.05) |
465 amps |
4/4670(2118) |
|
| |
| Above performance specs are based on first layer of drum |
|
