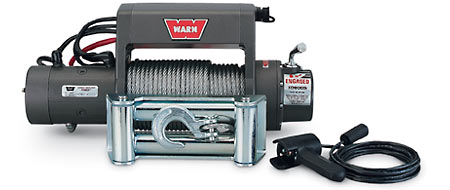

WARN XD9000i








XD9000i SELF-RECOVERY WINCH
You'll probably see more XD9000i winches on trail rigs than any other winch.
No load line speed of 38-feet per minute and three-stage planetary gearing and the ability to
run cool with low amp draw for long winching cycles are just a few reasons why.

XD9000i SPECS/PART NUMBERS
Your Price: $1275.00
Part Number: PN 27550 (12V DC)

Your Price: $1275.00
Part Number: PN 275502 (12V DC, CE)

Your Price: $1115.00
Part Number: PN 274022 (24V DC, CE)

Rated Line Pull: 9000 lbs. (4080 kgs.) single-line
Motor: 12V 4.6 hp, 24V 2.5 hp, Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 85 lbs. (38.5 kgs.)
Wire Rope: 125', 5/16" diameter (38m, 8mm diameter)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Powder Coat
Nuts/Bolts: PN 39570
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, Manuals, Safety Hook and Thimble.

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 38(11.6) 70 amps 1/9000(4082)
2000(910) 14.4(4.39) 180 amps 2/8190(3715)
4000(1810) 11(3.35) 255 amps 3/7500(3402)
6000(2720) 8.67(2.64) 330 amps 4/7010(3180)
8000(3630) 6.88(2.10) 415 amps 5/6570(2980)
9000(4080) 6.38(1.94) 460 amps

24V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 27.2(8.29) 44 amps 1/9000(4082)
2000(910) 21(6.40) 96 amps 2/8190(3715)
4000(1810) 17(5.18) 149 amps 3/7500(3402)
6000(2720) 16(4.88) 180 amps 4/7010(3180)
8000(3630) 9(2.74) 230 amps 5/6570(2980)
9000(4080) 5.2(1.58) 270 amps

Above performance specs are based on first layer of drum

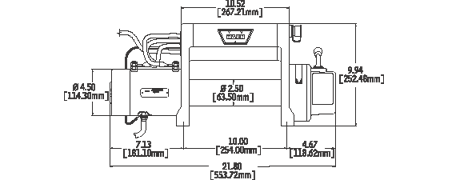

Winch Dimensions: 21.8" L. x 6.3" D. x 9.94" H.
(553mm L. x 160mm D. x 252mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
