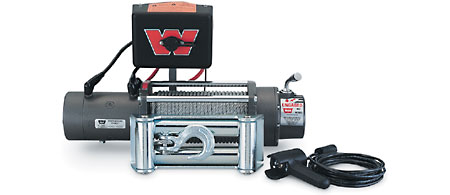

WARN XD9000 SELF-RECOVERY WINCH








XD9000 SELF-RECOVERY WINCH
A long-time best seller, the XD9000's compact body and separate control pack lets it work effectively in very tight spaces. It uses the 4.6 hp Series WoundTM motor and three-stage planetary gearing offered on most of our winches, so torque and line speed are outstanding. A quiet, double-durable winch, pure and simple.

XD9000 SPECS/PART NUMBERS
Your Price: $1210.00
Part Number: PN 28500 (12V DC)

Your Price: $975.00
Part Number: PN 285002 (12V DC, CE)

Your Price: $1366.00
Part Number: PN 265012 (24V DC, CE)

Rated Line Pull: 9000 lbs. (4080 kgs.) single-line
Motor: 12V 4.6 hp, 24V 2.5 hp Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 78 lbs. (35 kgs.)
Wire Rope: 100', 5/16"diameter (30m, 8mm diameter)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Powder Coat
Nuts/Bolts: PN 39625
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 38(11.6) 70 amps 1/9000(4082)
2000(910) 14.4(4.39) 180 amps 2/8190(3715)
4000(1810) 11(3.35) 255 amps 3/7500(3402)
6000(2720) 8.67(2.64) 330 amps 4/7010(3180)
8000(3630) 6.88(2.10) 415 amps
9000(4080) 6.38(1.94) 460 amps

24V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 22.5(6.86) 46 amps 1/9000(4082)
2000(910) 14.5(4.42) 93 amps 2/8190(3715)
4000(1810) 11(3.35) 131 amps 3/7500(3402)
6000(2720) 9.1(2.77) 169 amps 4/7010(3180)
8000(3630) 7.9(2.41) 207 amps 5/6570(2980)
9000(4080) 7.4(2.26) 226 amps

Above performance specs are based on first layer of drum

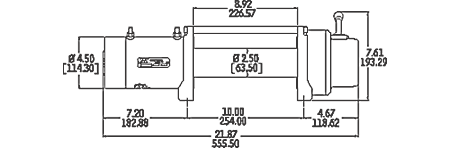

Winch Dimensions: 21.8" L. x 6.3" D. x 7.6" H.
(555mm L. x 160mm D. x 193mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
