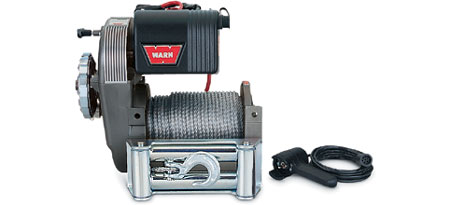

WARN M8274-50 SELF-RECOVERY WINCH








M8274-50 SELF-RECOVERY WINCH
Loved by off-roaders who compete, the WARN M8274-50 is one of our fastest winches. No load retrieval speed is 73.4 feet per minute. At 150 feet of 5/16" cable, it also has a very long line capacity. Its unique spur-gear drive train and upright design are totally rugged and its braking system delivers smooth operation with superior heat dissipation. Roller fairlead, remote control on 12-ft. lead, free spool clutch and battery cables are included

M8274-50 SPECS/PART NUMBERS

Your Price: $2130.00
Part Number:PN 38631 (12V DC)

Your Price: $1410.00
PN 386312 (12V DC, CE)

Your Price: $1550.00
PN 375832 (24V DC, CE)

Rated Line Pull: 8000 lbs. (3630 kgs.) single-line
Motor: 12V 4.6 hp/3.43kw, 24V 2.5 hp/3.43kw, Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: Spur Gear
Gear Ratio: 134:1
Lubrication: 6 oz. SAE 30 (non-detergent)
Clutch (freespooling): Sliding Motor Pinion Gear
Brake: Automatic, disc type
Drum Diameter/Length: 3.5"/8.5" (9cm/22cm)
Weight: 110 lbs. (50 kgs.)
Wire Rope: 150', 5/16" diameter (46m, 8mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat with Clear Coat
Nuts: PN 7616, L/W: PN 2146
Bolts: PN 7165
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 73.4(22.4) 55 amps 1/8000(3629)
2000(910) 22(6.71) 190 amps 2/7460(3384)
4000(1810) 12(3.66) 275 amps 3/6980(3166)
6000(2720) 9.50(2.90) 350 amps 4/6620(3003)
8000(3630) 6.10(1.86) 450 amps 5/6290(2853)

24V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 65(19.8) 24 amps 1/8000(3629)
2000(910) 23(7.01) 96 amps 2/7460(3384)
4000(1810) 17(5.18) 149 amps 3/6980(3168)
6000(2720) 13(3.96) 203 amps 4/6620(3005)
8000(3630) 7.9(2.41) 273 amps 5/6290(2855)

Above performance specs are based on first layer of drum

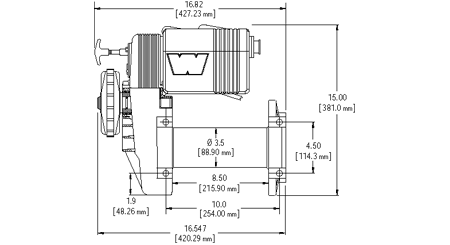

Winch Dimensions: 16.5" L. x 8.5" D. x 15" H.
(420mm L. x 220mm D. x 381 mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
