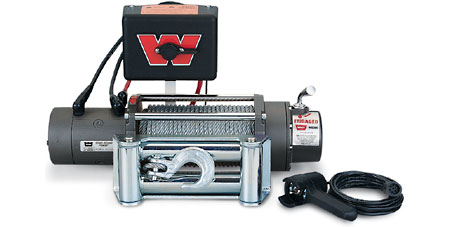

WARN M6000 SELF-RECOVERY WINCH








M6000 SELF-RECOVERY WINCH
This is our medium-to-light duty winch. But it's no weakling. Designed to be compact, its 4.8 hp Series WoundTM motor can still pull 6,000 lbs., making it ideal for smaller vehicles with big ideas.

M6000 SPECS/PART NUMBERS

Your Price: $910.00
Part Number:PN 45880 (12V DC)

Your Price: $730
Part Number:PN 458802 (12V DC, CE)

Your Price: $880
Part Number: PN 465052 (24V DC, CE)

Your Price: $690
PN 37960 (12V, DC, CE Short Drum)

Rated Line Pull: 6000 lbs. (2720 kgs) single-line
Motor: 12V 4.8 hp, 24V 2.1 hp, Series WoundTM
Remote Control: Remote switch, 12' (3.7m.) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs.)
Wire Rope for PN 45880, 458802, 465052: 80', 5/16" diameter (24m, 8mm diam.)
Wire Rope for PN 37960: 50', 5/16" diameter (15m, 8mm diam.)
Fairlead for PN 45880, PN 458802, PN465052: Roller
Fairlead for PN 37960: Hawse
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 39625
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 48.5(14.8) 85 amps 1/6000(2722)
2000(910) 23.7(7.22) 175 amps 2/5460(2477)
4000(1810) 12.9(3.93) 360 amps 3/5000(2268)
6000(2720) 10.0(3.05) 465 amps 4/4670(2118)

24V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 37.1(11.31) 46 amps 1/6000(2722)
2000(910) 20.3(6.19) 121 amps 2/5460(2477)
4000(1810) 14.4(4.39) 185 amps 3/5000(2268)
6000(2720) 11.2(3.41) 249 amps 4/4670(2118)

Above performance specs are based on first layer of drum

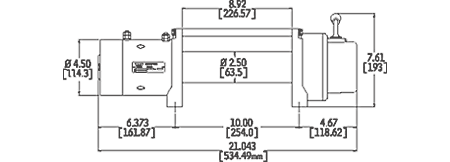

Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H
(534mm L. x 160m D. x 193mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
