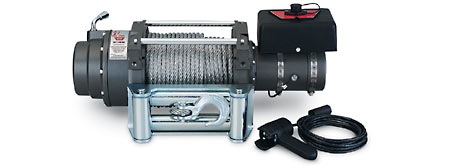

WARN M12000 SELF-RECOVERY WINCH








M12000 SELF-RECOVERY WINCH
For heavy-duty winching needs, this winch is a champion workhorse. Big torque, power and quick no-load retrieval speed is 30 feet per minute. Its design is low profile, so it'll fit where you want. And it's powered by the 4.6-hp Series WoundTM motor and our proven three-stage planetary gear train. With 125 ft. of 3/8" wire rope, the WARN M12000 can solve most any pulling problem.

M12000 SPECS/PART NUMBERS

Your Price: $1815.00
Part Number: PN 17801 (12V DC)

Your Price: $1315.00
Part Number: PN 178012 (12V DC, CE)

Your Price: $1510.00
Part Number: PN 265072 (24V DC, CE)

Rated Line Pull: 12000 lbs. (5440 kgs.) single-line
Motor: 12V 4.6 hp, 24V 2.5 hp Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 261:1
Lubrication: Aeroshell # 17
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 3.5"/8.2" (9cm/21cm)
Weight: 136lbs. (62kgs.)
Wire Rope: 125', 3/8"diameter (38m, 9.5mm diam)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 39572
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 30(9.14) 67 amps 1/1200(5443)
2000(910) 14(4.27) 140 amps 2/11120(5044)
4000(1810) 8.62(2.63) 210 amps 3/10340(4690)
6000(2720) 6.92(2.11) 250 amps 4/9770(4432)
8000(3630) 5.80(1.77) 320 amps 5/9250(4196)
10000(4540) 4.39(1.34) 370 amps
12000(5440) 3.86(1.18) 440 amps

24V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 31.94(9.57) 24 amps 1/12000(5443)
2000(910) 11.7(3.57) 105 amps 2/11120(5044)
4000(1810) 9.5(2.90) 129 amps 3/10340(4690)
6000(2720) 8.5(2.59) 152 amps 4/9770(4432)
8000(3630) 7.5(2.29) 175 amps 5/9250(4196)
10000(4540) 6.5(1.98) 198 amps
12000(5440) 6.0(1.83) 221 amps

Above performance specs are based on first layer of drum

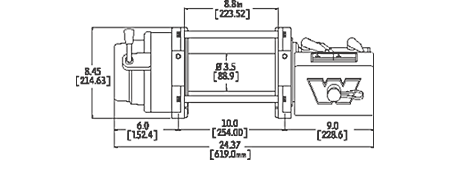

Winch Dimensions: 24.37" L. x 8.45" D. x 11" H.
(6.19mm L. x 214.63mm D. x 279mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
