WARN 16.5ti THERMOMETRIC SELF-RECOVERY WINCH








16.5ti THERMOMETRIC SELF-RECOVERY WINCH
What do you get when you combine 16,500 lbs. of pulling power with all the innovative features of the WARN ti-series? The new WARN 16.5ti winch. The highest capacity, most technologically advanced truck winch in the industry today.

The 16.5ti features the full diagnostic ability of WARN Thermometric technology, plus the extreme sealing, durability and reliability that the WARN ti-series of winches are known for. The new, more efficient design delivers faster line speeds and lower amp draw. It's beefed up where needed, and features a new aluminum solenoid housing cover. Not to mention 90 feet of aircraft grade, 7/16" wire rope. If you've got a big rid, and you like to load it up, this is the winch to handle it.

16.5ti SPECS/PART NUMBERS
Your Price: $2230.00
Part Number: PN 68801 (12V DC)
Rated Line Pull: 16500 lbs. (7484 kgs.) single-line
Motor: 12V 4.6 hp, Gen II, Series Wound
Remote Control: Remote switch, ti, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 315:1
Lubrication: Molybue: #1 or Aeroshell #17
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Direct Drive Cone
Wire Rope: 90', 7/16" diameter (27m, 11mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Chromate with high-gloss dark gray powder coat
Drum Diameter/Length: 3.5"/8.2" (9cm/21cm)
Weight: 138 lbs. (63 kgs.)

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 23.6(7.20) 68 amps 1/16500(7484)
2000(907) 12.07(3.68) 138 amps 2/15279(6930)
4000(1814) 9.22(2.81) 189 amps 3/12672(5748)
6000(2721) 7.37(2.25) 240 amps 4/10824(4910)
8000(3628) 6.08(1.85) 291 amps
10000(4536) 5.12(1.56) 342 amps
12000(5443) 4.40(1.34) 393 amps
14000(6350) 3.86(1.18) 444 amps
16000(7257) 3.38(1.03) 494 amps
16500(7484) 3.24(0.99) 507 amps


Above performance specs are based on first layer of drum

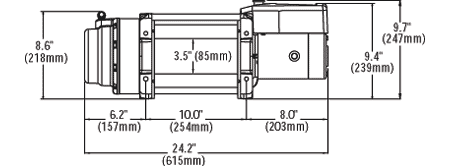

Winch Dimensions: 24.7" L. x 8.5" D. x 9.7" H.
(628mm L. x 216mm D. x 247mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
