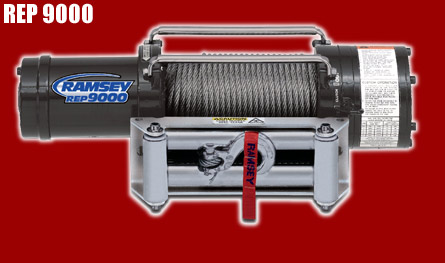

Ramsey REP 9000







Model REP 9000R 12V
Part# 111038
Your Price: $985.00


Model REP 9000R 24V
Part# 110976
Your Price: $1105.00


Model REP 9000R 12V CE
Part# 111072
Your Price: Call 845-596-3237 for Price Quote


Model REP 9000R 24V CE
Part# 111070
Your Price: Call 845-596-3237 for Price Quote


FEATURES
-Proven 3-stage planetary gear system for fast line speed
-Motor and solenoids are grounded directly to battery
-Strong automatic load-holding brake for strength
-Cam action clutch disengages planetary gear system for free spooling
-Weather resistant solenoid assembly
-12 ft. wire pendant remote
-6 ft. (1.83 m) 2 gauge battery cables with connectors
-4-way roller fairlead
-Limited lifetime warranty
-Made in the USA


SPECIFICATIONS

Rated line pull (single line) 9,000 lbs. (4,070 kgs)
Gear reduction ratio 138:1 (12V) (24V)
Motor Series wound - 4.8 hp (12V) 2.5 hp (24V) DC
Overall dimensions (LxWxH) 22.65" x 6.12" x 6.38" (575 mm x 156 mm x 162 mm)
Drum size Diameter 2.5" (63mm) Length 9" (228mm)
Weight REP 9000R - 92 lbs. (41.7kgs)
Cable supplied 95ft. (29m) of 5/16" (8 mm) galvanized aircraft cable with replaceable clevis hook
Mounting Bolt Pattern 10.00± .015 IN X 4.50± .015 IN (254.0 x 114.3 mm)

Note: 24V models have different dimensions.  Consult factory.

Line Speed & Amp Draw - First Layer
Line
lbs.

NO
2,000
4,000
6,000
9,000
Pull
kgs

LOAD
900
1,810
2,720
4,070

Line
fpm
12V
33
16.7
12.7
10.6
8.0
Speed

24V
25
15
11
9
7

mpm
12V
10.0
5.1
3.9
3.2
2.4


24V
7.6
4.5
3.3
2.7
2.1

Motor Current
amps
12V
97
180
260
335
420


24V
35
75
110
140
175
Line Pull Cable & Capacity
Layer of Cable

1
3
4

Rated Line
lbs.
9,000
7,300
6,200
5,400
Pull per Layer
kgs
4,070
3,300
2,800
2,440

Cable Capacity
ft.
15
40
70
95
per Layer
m
4
12
21
28


Note: Fairlead does not attach directly to winch.
