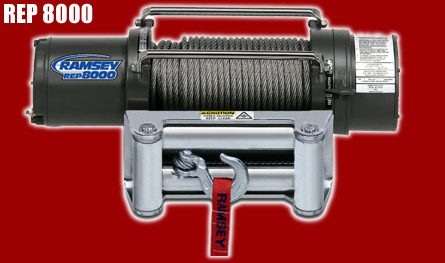

Model REP 8000R 12V
Part# 111036
Your Price: $850.00
Model REP 8000R 24V
Part# 110809
Your Price:
$955.00
Model REP 8000R 24V CE
Part# 111071
Your Price:Call 845-596-3237
for Price
Quote
FEATURES
|
-Proven
3-stage planetary gear system for fast line speed
|
|
-Motor and
solenoids are grounded directly to battery
|
|
-Strong
automatic load-holding brake for strength
|
|
-Cam action
clutch disengages planetary gear system for free spooling
|
|
-Weather
resistant solenoid assembly
|
|
-12 ft.
wire pendant remote
|
|
-6 ft.
(1.83 m) 2 gauge battery cables with connectors
|
|
-4-way
roller fairlead
|
|
-Limited
lifetime warranty
|
|
-Made in
the USA
|
SPECIFICATIONS
| Rated line
pull |
(single
line) 8,000 lbs. (3,620 kgs)
|
| Gear
reduction ratio |
126:1 (12V)
- 150:1 (24V)
|
| Motor |
Series
wound - 3.8 hp (12V) - Permanent magnet 2.6 hp (24V)DC
|
| Overall
dimensions |
(LxWxH)
21.38" x 6.00" x 6.38" (530 mm x 152 mm x 162 mm)
|
| Drum size |
Diameter
2.5" (63 mm) Length 9" (228 mm)
|
| Weight |
REP 8000H -
75 lbs. (34kgs) -------REP 8000R - 75 lbs. (34kgs)
|
| Cable
supplied |
95ft. (29
m) of 5/16" (8 mm) galvanized aircraft cable with replaceable clevis
hook
|
| Mounting
Bolt Pattern |
10.00±
.015 IN X 4.50± .015 IN (254.0 x 114.3 mm)
|
Note:
24V models have different dimensions. Consult factory.
|
Line
Speed & Amp Draw - First Layer
|
|
Line
|
lbs.
|
|
NO
|
2,000
|
4,000
|
6,000
|
8,000
|
|
Pull
|
kgs
|
|
LOAD
|
900
|
1,810
|
2,720
|
3,620
|
|
|
Line
|
fpm
|
12V
|
36
|
15
|
12
|
8
|
5
|
|
Speed
|
|
24V
|
18
|
15
|
12
|
9
|
6.5
|
|
mpm
|
12V
|
11.0
|
4.6
|
3.7
|
2.4
|
1.5
|
|
|
24V
|
5.4
|
4.5
|
3.6
|
2.7
|
1.9
|
|
|
Motor
Current
|
amps
|
12V
|
87
|
168
|
258
|
320
|
405
|
|
|
24V
|
10
|
50
|
100
|
150
|
210
|
|
Line
Pull & Cable Capacity
|
|
Layer of
Cable
|
|
1
|
2
|
3
|
4
|
|
|
Rated
Line
|
lbs.
|
8,000
|
6,500
|
5,500
|
4,800 |
|
Pull per
Layer
|
kgs
|
3,620
|
2,940
|
2,490
|
2,170
|
|
| Cable
Capacity |
ft
|
15
|
40
|
70
|
95 |
| per
Layer |
m
|
4
|
12
|
21
|
28 |
R - 4-way
roller fairlead
Note: Fairlead does not attach directly to winch.
|
|
