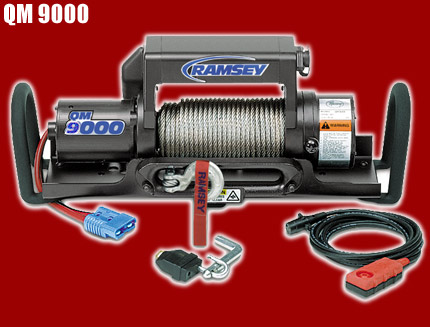

Ramsey QM 9000








Model QM 9000   12v
Part# 111040
Your Price: $1285.00


Model QM 9000 12v (for H2 Hummer®)
Part# 111081

Your Price: Call 845-596-3237 for Price


FEATURES
Used with a class-three rear receiver hitch with 5,000 lbs. minimum weight carrying (WC) rating (receiver must not be recessed more than 1 ¼ " from bumper face) --- * All products in the QM series will front mount into QM Front Receivers from Ramsey Winch .
Proven 3-stage planetary gear system design for fast line speed.
Cam action clutch disengages planetary gear system for free spooling
Strong automatic load-holding brake for strength and reliability.
Weather resistant fully integrated solenoid assembly.
12 ft. wire pendant remote.
Anti theft locking pin.
Hawse fairlead.
Limited lifetime warranty
Made in the USA

SPECIFICATIONS
Rated line pull
(single line) 9,000 lbs. (4,070 kgs)
Gear reduction ratio
138:1 (12V)
Motor
Series sound - 4.4 hp (12V) DC
Overall dimensions
(LxWxH) 27.77" x 14.38" x 11.14" (705mm x 365mm x 283mm)
Drum size
Diameter 2.5" (63mm) Length 9" (228mm)
Weight
QM 9000- 115 lbs. (52.2kgs)
Cable supplied
105ft. (31.8m) of 5/16 (8 mm) galvanized air craft cable with replaceable clevis hook


Line Speed & Amp Draw - First Layer
Line
lbs.

NO
2,000
4,000
6,000
9,000
Pull
kgs

LOAD
900
1,810
2,720
4,070

Line
fpm

29
15
11
9
7
Speed
mpm

8.8
4.6
3.4
2.7
2.1

Motor Current
amps
12V
90
190
245
315
400


Line Pull Cable Capacity

Layer of Cable

1
3
4
5


Rated Line
lbs.
9,000
7,300
6,200
5,400
4,700

Pull per Layer
kgs
4,070
3,300
2,800
2,440
2,130


Cable Capacity
ft.
15
40
70
95
105

per Layer
m
4
12
21
28
32


 QM 8000/9000 must be used with a class-three rear receiver hitch, or equivalent, with 5,000 lbs. minimum weight carrying (WC) rating.  Receiver must not be recessed more than 1 ¼ " from bumper face.
