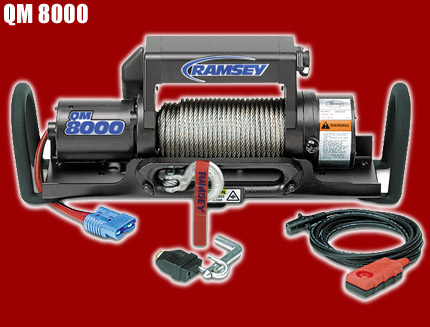

Model QM 8000
12v
Your Price: $1075.00
Part# 111039
FEATURES
Used with a
class-three rear receiver hitch with 5,000 lbs. minimum weight carrying
(WC) rating (receiver must not be recessed more than 1 ¼ " from
bumper face) --- * All products in the QM series will
front
mount into QM Front Receivers from Ramsey Winch.
|
Proven
3-stage planetary gear system design for fast line speed.
|
Cam action
clutch disengages planetary gear system for free spooling
|
Strong
automatic load-holding brake for strength.
|
Weather
resistant fully integrated solenoid assembly.
|
12 ft. wire
pendant remote.
|
Anti theft
locking pin.
|
Hawse
fairlead.
|
Limited
lifetime warranty
|
Made in the
USA
|
SPECIFICATIONS
Rated line
pull |
(single
line) 8,000 lbs. (3,620 kgs)
|
Gear
reduction ratio |
126:1
(12V)
|
Motor |
Series
wound - 5.5 hp (12V) DC
|
Overall
dimensions |
(LxWxH)
27.77" x 14.38" x 11.14" (705mm x 365mm x 283mm)
|
Drum size |
Diameter
2.5" (63mm) Length 9" (228mm)
|
Weight |
QM8000- 107
lbs. (48.5kgs)
|
Cable
supplied |
95ft. (29m)
of 5/16 (8 mm) galvanized air craft cable with replaceable clevis hook
|
|
|
|
Line
Speed & Amp Draw
|
Line
|
lbs.
|
NO
|
2,000
|
4,000
|
6,000
|
8,000
|
Pull
|
kgs
|
LOAD
|
900
|
1,810
|
2,720
|
3,620
|
|
Line
|
fpm
|
35
|
18
|
13
|
10
|
8
|
Speed
|
mpm
|
10.6
|
5.5
|
3.9
|
3.0
|
2.4
|
|
Motor
Current |
amps 12V |
95
|
210
|
270
|
355
|
420
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Line
Pull Cable Capacity
|
Layer of
Cable
|
|
1
|
2
|
3
|
4
|
|
Rated Line |
lbs.
|
8,000
|
6,550
|
5,540
|
4,800 |
Pull per Layer |
kgs
|
3,629
|
2,971
|
2,513
|
2,177 |
|
Cable Capacity |
ft.
|
15
|
40
|
70
|
95
|
per Layer |
m
|
4
|
12
|
21
|
28
|
QM
8000/9000 must be used with a class-three rear receiver hitch, or
equivalent, with 5,000 lbs. minimum weight carrying (WC) rating.
Receiver must not be recessed more than 1 ¼ " from bumper
face.
|
|
