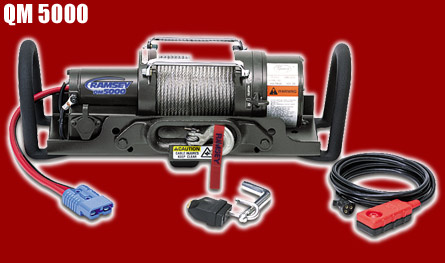

Ramsey QM 5000








Model QM 5000 12v
Part# 111008
Your Price: $825.00


Model QM 5000   20v
Part# 111009
$925.00


FEATURES

Used with a class-three rear receiver hitch with 5,000 lbs. minimum weight carrying (WC) rating (receiver must not be recessed more than 1 ¼ " from bumper face) --- * All products in the QM series will front mount into QM Front Receivers from Ramsey Winch.
-Proven 3-stage planetary gear system design for fast line speed.
-Cam action clutch disengages planetary gear system for free spooling
-Strong automatic load-holding brake for strength.
-Weather resistant fully integrated solenoid assembly.
-12 ft. wire pendant remote.
-Anti theft locking pin.
-Hawse fairlead.
-Limited lifetime warranty
-Made in the USA

SPECIFICATIONS
Rated line pull
(single line) 5,000 lbs. (2,260 kgs)
Gear reduction ratio
294:1 (12V) - 210:1 (24V)
Motor
Permanent magnet - 1.3hp (12) DC  - 1.9hp (24v)DC
Overall dimensions
(LxWxH)23.53" x 14.38" x 8.14" (598mm x 365mm x 203mm)
Drum size
Diameter 2.5" (63mm) Length 5.5" (139mm)
Weight
QM5000- 78 lbs. (36kgs)
Cable supplied
.80ft. (24m) of 1/4 (6 mm) galvanized air craft cable with replaceable clevis hook


Line Speed & Amp Draw
Line
lbs.

NO
1,000
3,000
5,000
Pull
kgs

LOAD
450
1,360
2,260

Line
fpm
12v
15
11
8
5
Speed

24v 20 17 12 8

mpm
12v 4.5 3.3 2.4 1.5


24v 6 5.1 3.6 2.4

Motor Current
amps
12V 45 100 155 230


24V 20 50 105 160
Line Pull Cable Capacity
Layer of Cable

1
3
4

Rated Line
lbs.
5,000 4,200 3,600 3,200
Pull per Layer
kgs
2,260 1,900 1,630 1,450

Cable Capacity
ft.
15
30
55
80
per Layer
m
4.5
9
17
24


QM 5000 will mount into any standard class-three rear receiver hitch.  Receiver must not be recessed more than 1 ¼ " from bumper face.
