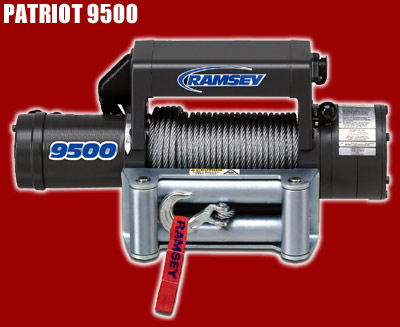

Ramsey Patriot 9500







Patriot 9500 R 12V with 12 ft. wire pendant
Part# 109153
Your Price: $1075.00

Patriot 9500 R 12V with wireless remote
Part# 109154
Your Price: $1165.00



Patriot 9500 R 24V with 12 ft. wire pendant
Part# 109171
Your Price: $1135.00

FEATURES
-Efficient 5.5 HP 12V DC series wound electric reversible motor for increased pulling power
-Proven 3-stage planetary gear system design for fast line speed
-Motor and solenoids are grounded directly to battery
-Automatic load-holding brake for strength and reliability
-Cam action clutch disengages planetary gear system for free spooling
-Weather resistant fully integrated solenoid assembly
-The Patriot series comes with either a 12 ft. wire pendant remote or the patent pending wireless remote
-6 ft. (1,83 M) 2 gauge battery cables with connectors
-4-way roller fairlead
-Limited lifetime warranty
-Made in the USA



SPECIFICATIONS
Rated line pull (single line) 9,500 lbs. (4,309 kgs)
Gear reduction ratio 138:1 (12V)
Motor Series wound - 5.5 hp (12V) DC
Overall dimensions (LxWxH) 22.66" x 6.12" x 9.94" (576 mm x 156 mm x 252 mm)
Drum size Diameter 2.5" (63 mm) Length 9" (228 mm)
Weight 93 lbs. (42 kgs)
Cable supplied 105 ft. (31.8 m) of 5/16" (8 mm) galvanized aircraft cable with replaceable clevis hook
Mounting bolt pattern 10.00± .015 IN X 4.50± .015 IN (254.0 x 114.3 mm)


Line Speed & Amp Draw - First Layer
Line
lbs.
NO
2,000
4,000
6,000
8,000
9,500
Pull
kgs
LOAD
900
1,810
2,720
3,620
4,309

Line
fpm
35.4
16.7
12.7
10.6
9.0
7.8
Speed
mpm
10.7
5.1
3.8
3.2
2.7
2.3

Motor Current
amps 12V
97
180
260
335
395
430








Line Pull & Cable Capacity
Layer of Cable

1
2
4
5

Rated Line
lbs.
9,500
7,780
6,600
5,725
5,050
Pull per Layer
kgs
4,309
3,528
2,993
2,596
2,290

Cable Capacity
ft
15
35
60
90
105
per Layer
m
10
18
27
36


Note: Fairlead does not attach directly to winch.






©2004
