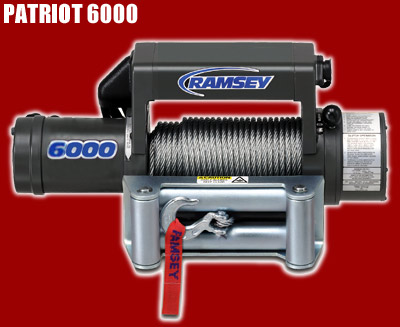

Patriot 6000 R 12V with
12 ft. wire pendant
Part# 109157
Your Price: $845.00
Patriot 6000 R 12V with wireless remote
Part# 109158
Your Price: $845.00
Patriot 6000 R 24V with 12 ft.
wire pendant
Part# 109169
Your Price:
$830.00
Patriot 6000 R
12V CE with 12 ft. wire pendant
Part# 109176
Your
Price: $845.00
FEATURES
-Efficient
5.5 HP 12V DC series wound electric reversible motor for increased
pulling power
|
-Proven
3-stage planetary gear system design for fast line speed
|
-Motor
and solenoids
are grounded directly to battery
|
-Automatic
load-holding brake for strength and reliability
|
-Cam
action clutch disengages planetary gear system for free spooling
|
-Weather
resistant fully integrated solenoid assembly
|
-The
Patriot series
comes with either a 12 ft. wire pendant remote or the patent pending
wireless
remote
|
-6 ft.
(1,83 M) 2 gauge battery cables with connectors
|
-4-way
roller fairlead
|
-Limited
lifetime warranty
|
-Made
in the USA
|
SPECIFICATIONS
Rated line
pull |
(single line)
6,000lbs. (2,720 kgs) |
Gear
reduction ratio |
90:1 (12V) |
Motor |
Series wound
- 5.5 hp (12V) DC |
Overall
dimensions |
(LxWxH) 22.66"
x 6.12" x 9.94" (576 mm x 156 mm x 252 mm) |
Drum size |
Diameter 2.5"
(63 mm) Length 9" (228 mm) |
Weight |
84 lbs. (38 kgs) |
Cable
supplied |
100
ft. (30.5 m) of 1/4" (6 mm) galvanized aircraft cable with
replaceable clevis hook
|
Mounting
bolt pattern |
10.00±
.015 IN X 4.50± .015 IN (254.0 x 114.3 mm) |
|
|
Line
Speed & Amp Draw - First Layer
|
Line
|
lbs.
|
NO
|
1,000
|
3,000
|
5,000
|
6,000
|
|
Pull
|
kgs
|
LOAD
|
450
|
1,350
|
2,260
|
2,720
|
|
|
Line
|
fpm
|
45
|
23
|
20
|
14
|
12
|
|
Speed
|
mpm
|
13.7
|
7.0
|
6.1
|
4.3
|
3.6
|
|
|
Motor
Current
|
amps 12V
|
100
|
200
|
270
|
350
|
405
|
|
|
|
|
|
|
|
|
|
Line
Pull & Cable Capacity
|
Layer of
Cable
|
|
1
|
2
|
3
|
4
|
|
Rated
Line
|
lbs.
|
6,000
|
5,075
|
4,400
|
3,880
|
Pull
per Layer
|
kgs
|
2,722
|
2,302
|
1,996
|
1,760
|
|
Cable Capacity |
ft
|
20
|
50
|
80
|
100 |
per Layer |
m
|
6
|
15
|
24
|
30 |
Patriot
6000 R 12V with 12 ft. wire pendant
|
Part# 109157
|
Patriot
6000 R 12V with wireless remote
|
Part# 109158
|
Patriot
6000 R 24V with 12 ft. wire pendant
|
Part# 109169
|
Patriot
6000 R 12V CE with 12 ft. wire pendant
|
Part# 109176
|
Note:
Fairlead does not attach directly to winch.
|
