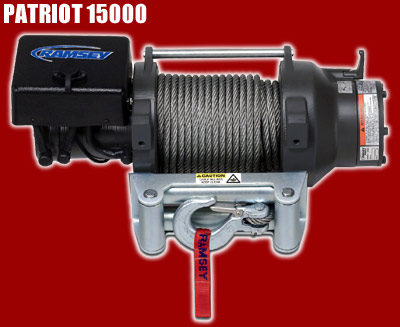

Ramsey Patriot 15000








Patriot 15000 R 12V with 12 ft. wire pendant
Part# 109159
$1495.00

Patriot 15000 R 24V with 12 ft. wire pendant
Part# 109160
$1585.00

Patriot 15000 R 12V with wireless remote
Part# 109172

$1520.00

FEATURES

Efficient 5.5 HP 12V DC series wound electric reversible motor for increased pulling power
Proven 3-stage planetary gear system design for fast line speed
Motor and solenoids are grounded directly to battery
Automatic load-holding brake for strength and reliability
Easy to use and verify engagement spring loaded pull and rotate clutch design for free-spooling
Weather resistant fully integrated solenoid assembly
The Patriot series comes with either a 12 ft. wire pendant remote or the patent pending wireless remote
6 ft. (1,83 M) 2 gauge battery cables with connectors
4-way roller fairlead
Limited lifetime warranty
Made in the USA


SPECIFICATIONS
Rated line pull (single line) 15,000 lbs. (6,800 kgs)
Gear reduction ratio 251:1 (12V)
Motor Series wound - 5.5 hp (12V) DC
Overall dimensions (LxWxH) 24.3" x 8.5" x 11" (617 mm x 215 mm x 279 mm)
Drum size Diameter 3.5" (88.9 mm) Length 8" (203 mm)
Weight 120 lbs. (54 kgs)
Cable supplied 90 ft. (27.4m) of 7/16" (11 mm) 6x25 galvanized EIPS wire rope with replaceable self-locking clevis hook
Mounting bolt pattern 10.00± .015 IN X 4.50± .015 IN (254.0 x 114.3 mm)  Foot - 4 threaded holes 10.00+ .015 (254,0 mm) side - 2 Threaded Holes


Line Speed & Amp Draw - First Layer
Line
lbs.
NO
4,000
8,000
10,000
12,000
15,000
Pull
kgs
LOAD
1,810
3,620
4,535
5,443
6800

Line
fpm
24.9
10.9
7.2
6.0
5.4
3.9
Speed
mpm
7.6
3.3
2.2
1.8
1.6
1.2

Motor Current
amps 12V
94
210
310
360
405
460








Line Pull & Cable Capacity
Layer of Cable

1
3
4

Rated Line
lbs.
15,000
12,200
10,300
9,000
Pull per Layer
kgs
6,800
5,533
4,672
4,082

Cable Capacity
ft
15
35
60
90
per Layer
m
4
10
18
27


Note: Fairlead does not attach directly to winch.
