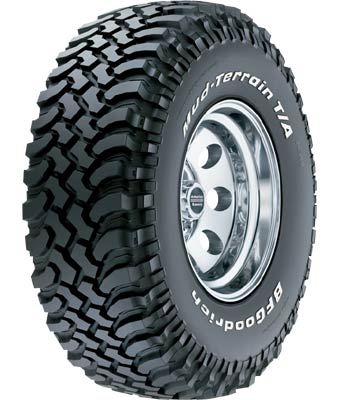

BFGoodrich Mud-Terrain T/A® KM
and
BFGoodrich Mud-Terrain T/A® KM2






Named one of the 10 most influential off-road products. What it is:The only tire named by jeep-enthusiast magazine “JP” as one of the 10 most influential off-road products of all time for its outstanding off-road traction and race-proven performance. Who it’s for: 4WD enthusiasts who want a more aggressive tire that delivers serious off-road traction.

EMAIL tires@roughgear.com FOR LATEST PRICING AND SHIPPING COSTS
Please include tire size, quantity, and shipping ZIP code.

BFGoodrich Mud-Terrain T/A® KM

Tire Size  Service
Description
 Sidewall MSPN Rim Width
Range (inches)
Section
Width on
Measuring
Rim Width
Overall
Diameter
Tread
Depth
(in/32nds)
Revs/Mile
at 45 mph
Max Load
(lbs@psi)
Original
Equipment
Tread
Pattern
LT255/75R17/C 111/108Q BSW 86927 6.5 - 8.5 10.04 on 7 32.05 19 649 2405@50 DC KM-DT
Original Equipment Key: DC = Daimler-Chrysler

* DT = Different Tread Pattern

Government UTQG Ratings do not apply to light truck sized tires.

1. The sizes shown are average design values for tires measured on specified measuring rim widths. Some tires may vary from this value by +/-3% of the section height (affecting overall diameter), and +/-4% of the section width.
2. Section width varies approximately 0.2" (5mm) for every 0.5" change in rim width.

WARNING: Serious or fatal injury may result from tire failure due to underinflation or overloading. To ensure correct air pressure and vehicle load, refer to vehicle owner's manual or tire information placard on the vehicle. Serious injury or death may result from explosion of tire/rim assembly due to improper mounting. Only tire professionals should mount tires and they should never inflate beyond 40 psi to seat the beads. Before mixing types of tires in any configuration on any vehicle, be sure to check the vehicle owner's manual for its recommendations.

DANGER: Never mount a 16" diameter tire on a 16.5" rim.
DANGER: Never mount a 17" diameter tire on a 17.5" rim.

Inflation pressure increase must not exceed the maximum pressure branded on the tire sidewall. When a customer requests a replacement tire with a lower speed rating than the original equipment tire, you must clearly communicate to him or her that the handling of the vehicle may be different, and that its maximum speed capability is limited to that of the lowest speed-rated tire on the vehicle. Exceeding the lawful speed limit is neither recommended nor endorsed.

EMAIL tires@roughgear.com FOR LATEST PRICING AND SHIPPING COSTS
Please include tire size, quantity, and shipping ZIP code.


BFGoodrich Mud-Terrain T/A® KM2

Tire Size  Service
Description
 Sidewall MSPN Rim Width
Range (inches)
Section
Width on
Measuring
Rim Width
Overall
Diameter
Tread
Depth
(in/32nds)
Revs/Mile
at 45 mph
Max Load
(lbs@psi)
Max Load
Dual
(lbs@psi)
Tread
Pattern
LT215/75R15/C 100/97Q RWL 36630 5.5 - 7 8.5 on 6 27.9 18 746 1765@50 1610@50 KM2
LT235/75R15/C 104/101Q RWL 85672 6 - 7 9.3 on 6.5 29.1 18 715 1985@50 1820@50 KM2
30x9.50R15/C 104Q RWL 15976 6.5 - 8.5 9.5 on 7.5 29.8 18 698 1985@50 N/A KM2
31x10.50R15/C 109Q RWL 00606 7 - 9 10.5 on 8.5 30.8 19 675 2270@50 N/A KM2
32x11.50R15/C 113Q RWL 11079 8 - 10 11.4 on 9 31.8 20 654 2535@50 N/A KM2
33x10.50R15/C 114Q RWL 08012 7 - 9 10.5 on 8.5 32.8 18 634 2600@50 N/A KM2
33x12.50R15/C 108Q RWL 45738 8.5 - 11 12.5 on 10 32.8 20 634 2205@35 N/A KM2
35x12.50R15/C 113Q RWL 44299 8.5 - 11 12.5 on 10 34.8 20 598 2535@35 N/A KM2
LT225/75R16/D 110/107Q RWL 21824 6 - 7 8.8 on 6 29.5 18 705 2335@65 2150@65 KM2
LT235/70R16/C 104/101Q RWL 24503 6 - 7.5 9.5 on 7 29.2 18 712 1985@50 1820@50 KM2
LT235/85R16/E 120/116Q RWL 39551 6 - 7.5 9.3 on 6.5 32 18 650 3042@80 2778@80 KM2
LT245/75R16/E 120/116Q RWL 13290 6.5 - 8 9.8 on 7 30.7 18 678 3042@80 2778@80 KM2
LT255/70R16/D 115/112Q RWL 38569 6.5 - 8 10.2 on 7.5 30.3 18 686 2680@65 2470@65 KM2
LT255/85R16/E 123/120Q RWL 30639 6.5 - 8 10 on 7 33.3 18 625 3415@80 3085@80 KM2
LT265/75R16/E 123/120Q RWL 01822 7 - 8 10.5 on 7.5 31.9 18 652 3415@80 3085@80 KM2
LT285/75R16/E 126/123Q RWL 32537 7.5 - 9 11.3 on 8 33.1 19 628 3750@80 3415@80 KM2
LT305/70R16/D 118/115Q RWL 24076 8 - 9.5 12.2 on 9 33.1 20 628 2910@50 2680@50 KM2
LT315/75R16/D 121Q RWL 24970 8 - 10 12.3 on 8.5 34.8 20 598 3195@50 N/A KM2
LT345/75R16/D 126P BSW 29037 9.5 - 12 13.58 on 9.5 36.38 20 572 3750@50 N/A KM2
LT365/75R16/C 121P BSW 28483 9.5 - 12 14.33 on 10 37.56 20 554 3195@35 N/A KM2
LT245/70R17/E 119/116Q RWL 05950 6.5 - 8 9.8 on 7 30.8 18 676 3000@80 2755@80 KM2
LT245/75R17/E 121/118Q RWL 29446 6.5 - 7.5 9.8 on 7 31.7 18 656 3195@80 2910@80 KM2
LT255/80R17/E 121/118Q RWL 35737 6.5 - 8.5 10 on 7 33.3 18 625 3195@80 2910@80 KM2
LT265/70R17/E 121/118Q RWL 17685 7 - 8.5 10.7 on 8 31.9 18 652 3195@80 2910@80 KM2
LT285/70R17/D 121/118Q RWL 36575 7.5 - 9 11.5 on 8.5 33 19 630 3195@65 2910@65 KM2
LT305/65R17/E 121/118Q RWL 34424 8.5 - 11 12.2 on 9 32.8 20 634 3195@65 2910@65 KM2
35x12.50R17/D 119Q RWL 38371 8.5 - 11 12.5 on 10 34.8 20 598 3000@50 N/A KM2
37x12.50R17/D 124Q RWL 02707 8.5 - 11 12.5 on 10 36.8 20 566 3525@50 N/A KM2
38x14.50R17/D 121Q BSW 23241 10 - 12 14.7 on 12 37.8 20 551 3195@50 N/A KM2
40x14.50R17/C 121Q BSW 10977 10 - 12 14.7 on 12 39.8 20 523 3195@35 N/A KM2
LT305/60R18/E 121/118Q RWL 31489 8.5 - 11 12.2 on 9 32.6 20 637 3195@65 2910@65 KM2
35x12.50R18/D 118Q RWL 28459 8.5 - 11 12.5 on 10 34.8 20 598 2910@50 N/A KM2
36x13.50R18/D 121P BSW 31335 8.5 - 11 13.58 on 11 35.51 20 586 3195@35 N/A KM2
37x12.50R18/D 123Q RWL 97218 8.5 - 11 12.5 on 10 36.8 20 566 3415@50 N/A KM2
38x14.50R18/D 127P BSW 16885 10 - 12 14.65 on 12 37.52 20 554 3860@50 N/A KM2
40x14.50R18/C 123P BSW 30469 10 - 12 14.65 on 12 39.53 20 526 3415@35 N/A KM2
LT305/55R20/E 121/118Q RWL 20881 8.5 - 11 12.4 on 9.5 33.5 20 622 3195@65 2910@65 KM2
LT325/60R20/D 121Q RWL 34143 9 - 12 13 on 9.5 35.6 20 584 3195@50 N/A KM2
37x12.50R20/D 120Q RWL 39143 8.5 - 11 12.5 on 10 36.8 20 566 3085@50 N/A KM2
38x14.50R20/D 124P BSW 39550 10 - 12 14.65 on 12 37.52 20 554 3525@50 N/A KM2
40x14.50R20/C 121P BSW 09533 10 - 12 14.65 on 12 39.53 20 526 3195@35 N/A KM2
42x14.50R20/C 125Q BSW 96757 10 - 12 14.7 on 12 41.8 20 498 3640@35 N/A KM2
LT335/55R22/D 121Q BSW 10687 9 - 12 13.9 on 11 36.7 20 566 3195@50 N/A KM2
Government UTQG Ratings do not apply to light truck sized tires.

1. The sizes shown are average design values for tires measured on specified measuring rim widths. Some tires may vary from this value by +/-3% of the section height (affecting overall diameter), and +/-4% of the section width.
2. Section width varies approximately 0.2" (5mm) for every 0.5" change in rim width.

WARNING: Serious or fatal injury may result from tire failure due to underinflation or overloading. To ensure correct air pressure and vehicle load, refer to vehicle owner's manual or tire information placard on the vehicle. Serious injury or death may result from explosion of tire/rim assembly due to improper mounting. Only tire professionals should mount tires and they should never inflate beyond 40 psi to seat the beads. Before mixing types of tires in any configuration on any vehicle, be sure to check the vehicle owner's manual for its recommendations.

DANGER: Never mount a 16" diameter tire on a 16.5" rim.
DANGER: Never mount a 17" diameter tire on a 17.5" rim.

Inflation pressure increase must not exceed the maximum pressure branded on the tire sidewall. When a customer requests a replacement tire with a lower speed rating than the original equipment tire, you must clearly communicate to him or her that the handling of the vehicle may be different, and that its maximum speed capability is limited to that of the lowest speed-rated tire on the vehicle. Exceeding the lawful speed limit is neither recommended nor endorsed.



EMAIL tires@roughgear.com FOR LATEST PRICING AND SHIPPING COSTS
Please include tire size, quantity, and shipping ZIP code.
